Medical Cielo Teatro

Cielo Teatro

Line:
Application:
Certification:
Configuration:
Antibacterial paint treatmentData comunicationDirect lightingDisponibilità di accessori OKIGAS outletsIndirect lightingLED lightingNight lightingSingle/double din rail

Description

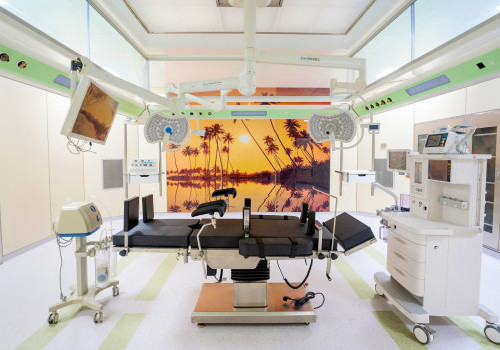

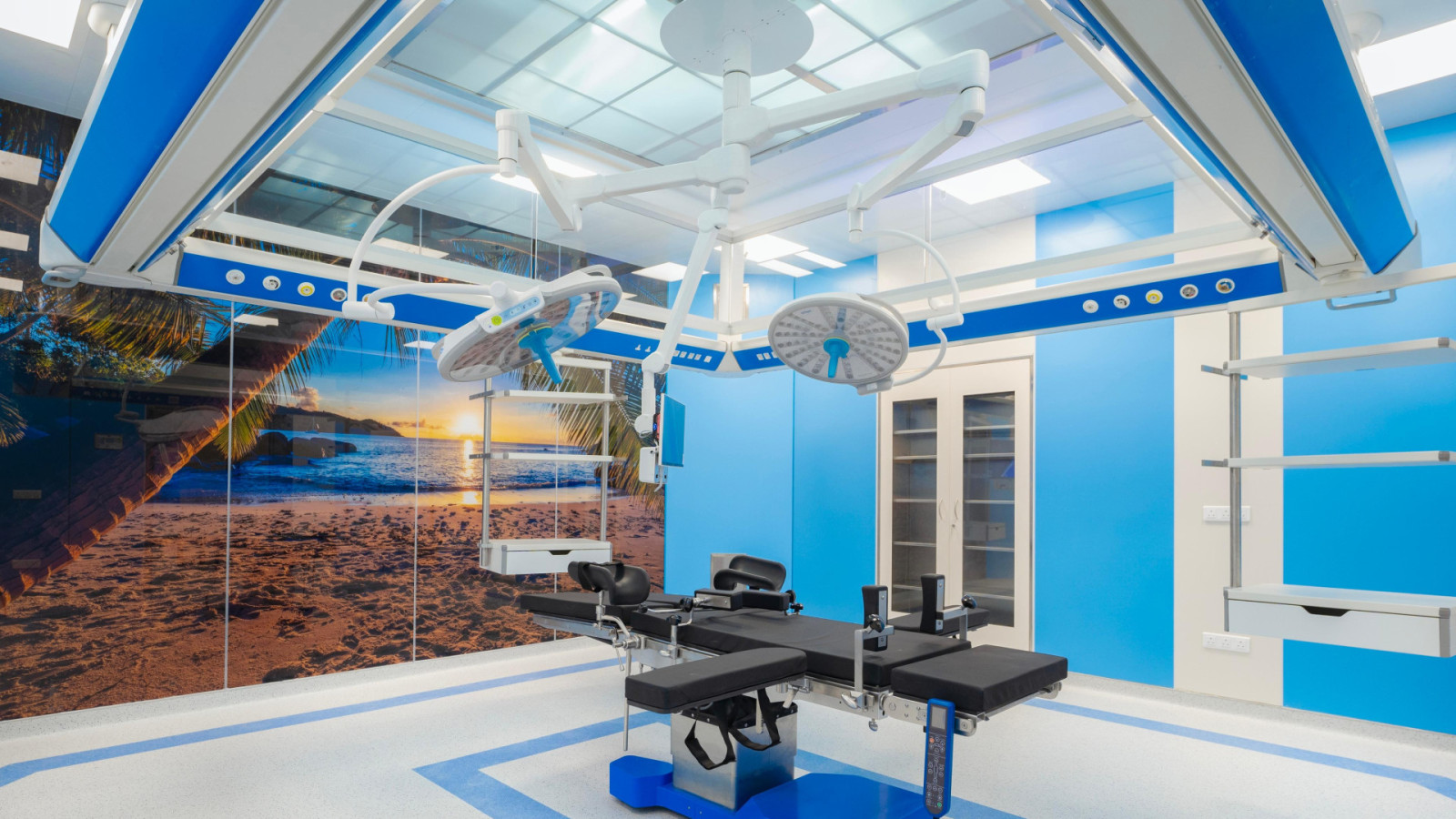

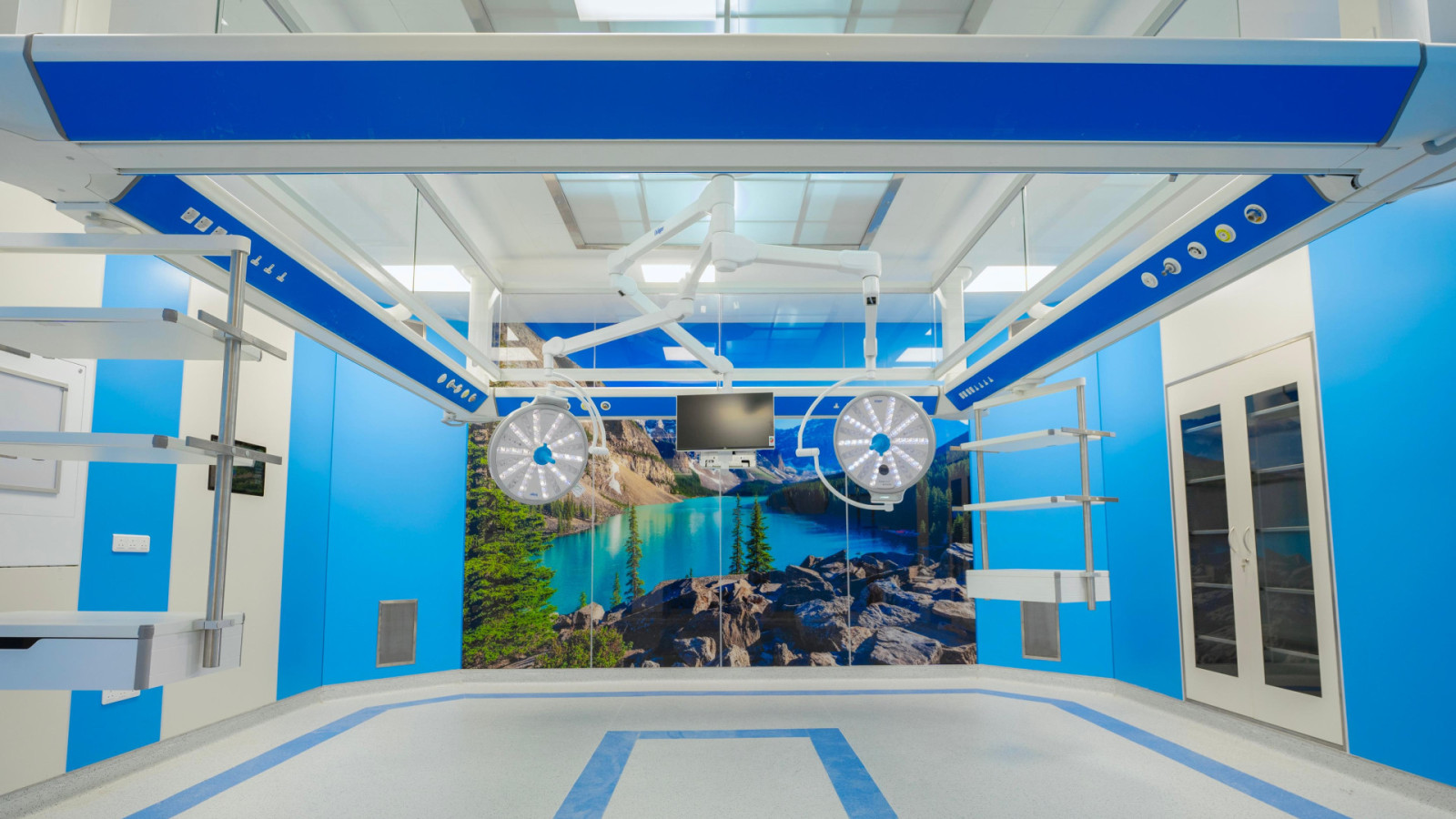

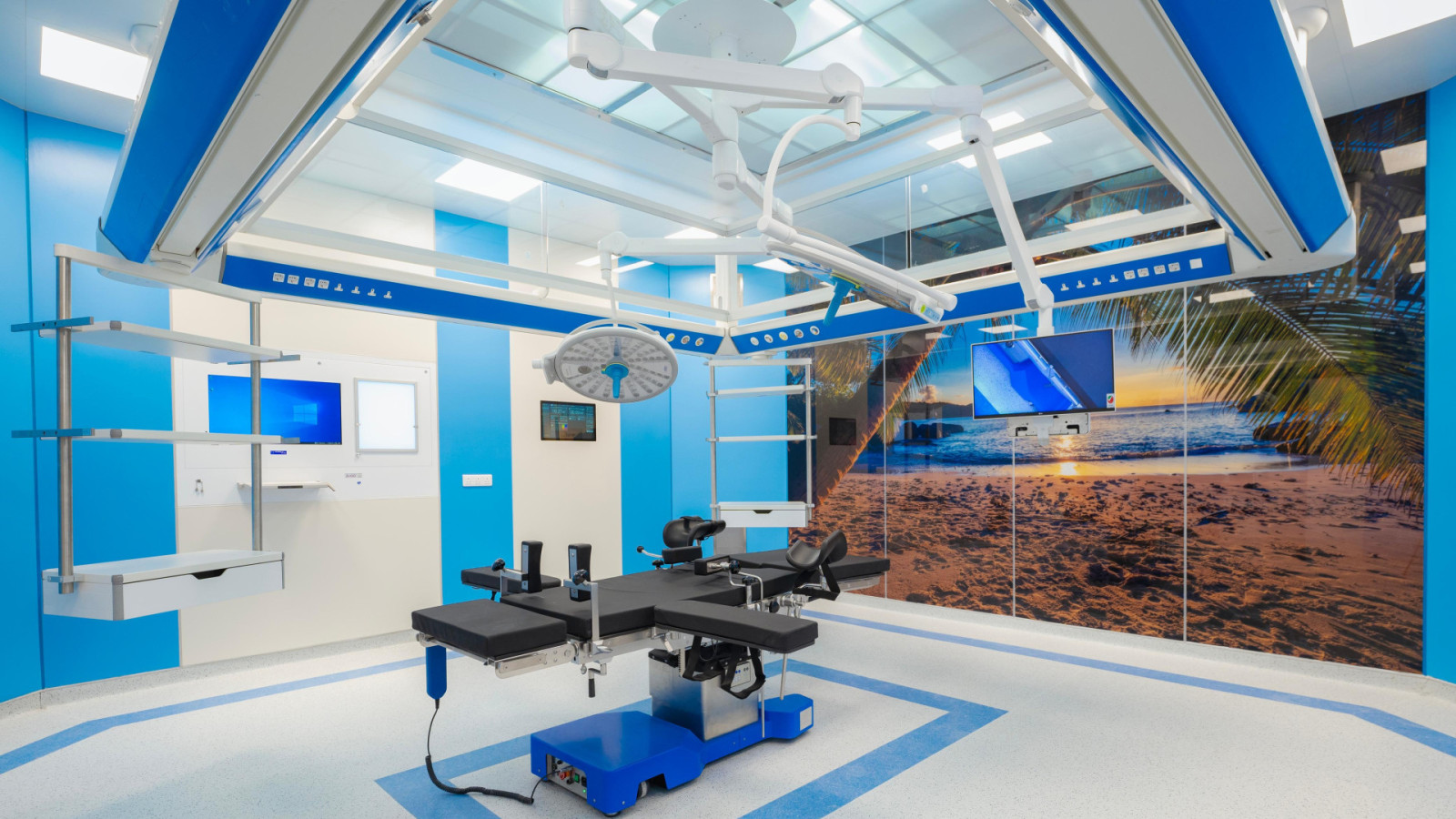

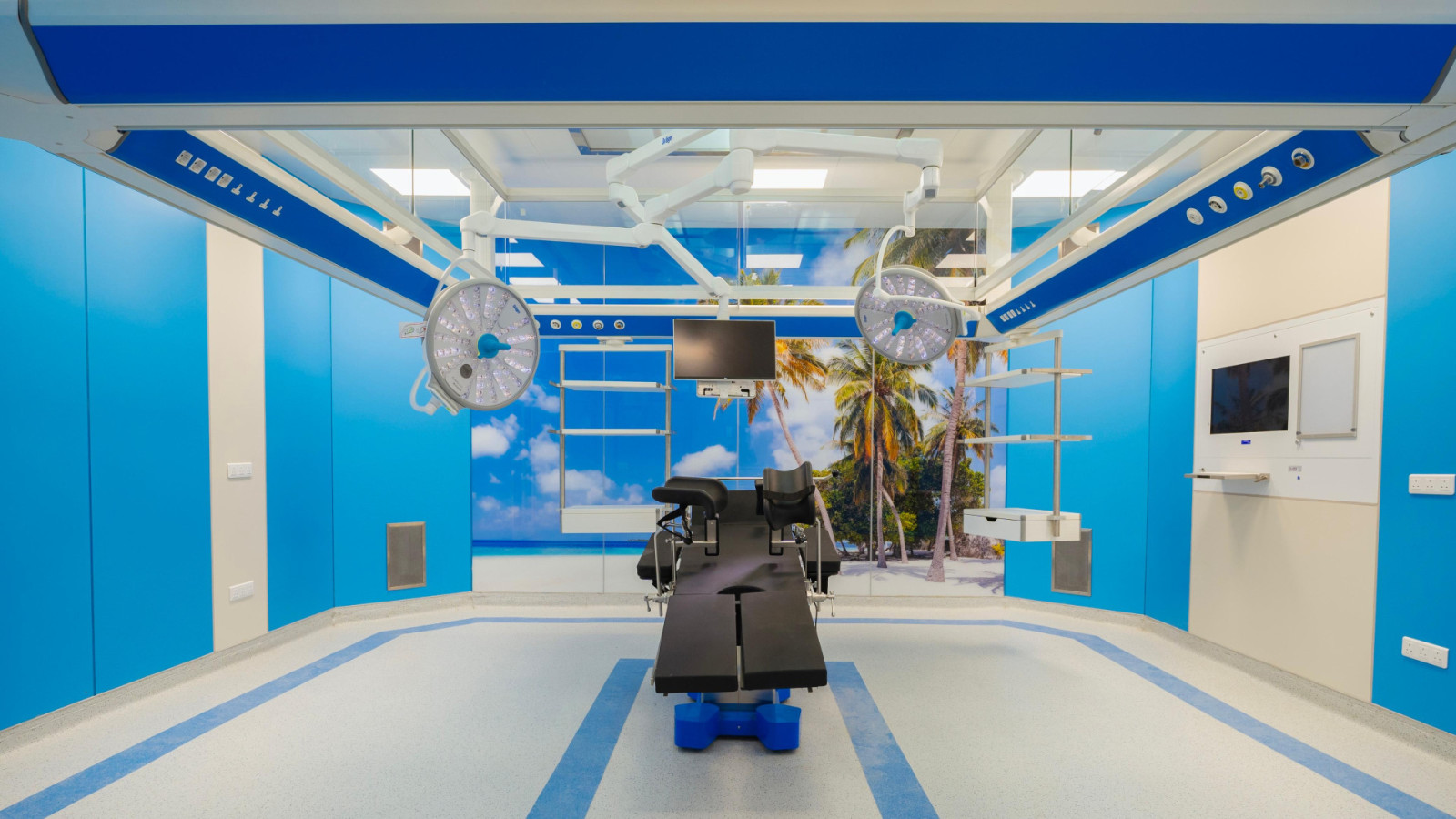

In only one solution OKI CIELO TEATRO houses all needed services (lights, sockets and switches, nurse call system, gas outlets) which can be arranged in each
side both internally and externally.

The structural profiles and pillars, as per our overall standard, are completely extruded: The generous thickness guarantees an adequate
payload allowing the possibility to mount all the necessary equipment without risking to overload the whole structure. The whole system
can be equipped with a broad range of accessories that can slide along all 4 sides thanks to our newly engineered rotating corners.
The possibility to combine the whole unit to a ceiling laminar flow system allows a dramatic reduction of the air turbulence that offers a
completely germ-free environment.
The corners can be offered evenly:
• Standard non-rotating having accessories sliding only along one side.
• 90° rotating to maximize the usage of accessories that can be moved from one side to the other.

More informations

ALL-ROUND INTERVENTION
Thanks to its 3 or 4 sides our media supply unit OKI CIELO TEATRO allows a 360° area for free intervention. All supply levels can be placed both inside and/or outside.

EASY TO INSTALL, EASIER TO MAINTAIN
We create equipment based on two simple key principles: ease of installation and long-lasting top quality components ensuring minimum maintenance and maxi- mum reliability.
OKI CIELO is delivered pre-assembled to reduce costs of installation.

ERGONOMICS: A MATTER OF ANGLE
90° rotating corners allow to move from one side to the other key components like the anesthesia machine and the ventilation equipment: this will always ensure the right position of the right equipment in the right moment.

GREEN LIGHTING
Decrease your electricity consumption thanks to our innovative LED stripes
which are available for all direct , indirect and even night lighting. Lesser maintenance, greater performance!
Up to 40% energy saving. 50.000 Hours average lifetime

POWDER COATING, POWERED HYGIENE
Protecting epoxy powder coating guarantees adequate hygienic surfaces. This could be boosted further with our dedicated antibacterial paint to ensure 100% shield against infectious agents.

HYGIENE FROM TOP…
The combination of the media supply unit with the laminar air flow ceiling will
guarantee perfect bacteria-free area with no risk of contamination around the operation area.

… TO BOTTOM
As all equipment is placed on the sliding components of the bridge there is no potential risk to spoil the workflow during operations. All components can be
easily moved along and away on each side keeping the floor space clear at all time.

LIGHTING
Dazzle free ambient lighting can be housed in the top profile for adequate indoor illumination, also direct light can be added on each side. Both can be equipped with T5/T8 neon lamps, or LED strips, with dimming light system through pushbutton or DALI. An optional selective RGB light solution is also available to customize the O.T. environment.

Colors

Descripción del color RAL.

RAL 1013
RAL 9010
RAL 3012
RAL 3011
RAL 2000
RAL 3020
RAL 1016
RAL 6018
RAL 6019
RAL 9006
RAL 5024
RAL 5015
RAL 5020
RAL 4008
RAL 4003
RAL 4000

Descripción del color MADERA

BETULLA RB18
CILIEGIO RC7
CILIEGIO S4
CILIEGIO RC4
ROVERE SBIANCATO RB13
ROVERE RC13
ROVERE M9
ROVERE S1
PINO M1
QUERCIA ANTICO M20
NOCE RS8
PERO RS16
VERDE RV5
VERDE RC3

Descripción del color de la impresión digital.

FANTASY SPAZIO
FANTASY OCEANO
FANTASY FATTORIA
FANTASY SAVANA
FANTASY FATTORIA 2.0
FANTASY AUTUNNO
FANTASY CIELO
FANTASY ISOLE
FANTASY GIRASOLE
FANTASY PALME

Lamp type
